Body Scan

Client

HP — Experience Design

Discipline

Concept design · XR

Year

2019 · never built

Idea

Scan the real, populate the virtual

Real to Virtual — the HP portal ecosystem: a scanned figure surrounded by camera rigs and drones

Real to Virtual — the HP portal ecosystem

Scan anything real — people, objects, whole spaces — and bring it into the virtual.

Concept work with the HP experience-design team on a family of scanning portals. The purpose was full-textured, high-resolution capture — from small objects to full bodies and whole spaces. From a step-in demonstrator tower down to a desktop scan plate; concepts from 2019, never built, shown exactly as designed.

The ecosystem

One portal family
The portal ecosystem — scan rigs and a drone circling a standing figure

Rigs and drones — capture from every angle

The portal ecosystem — floor stands and lamps arranged around a person

From floor stands to lamps — scanners, large and small

The demonstrator

Step-in portal
Body scanner demonstrator concept — a step-in portal tower with light columns

Step in, light up — modular build, collapses flat-pack

Thinking out loud

Sketches & configurations

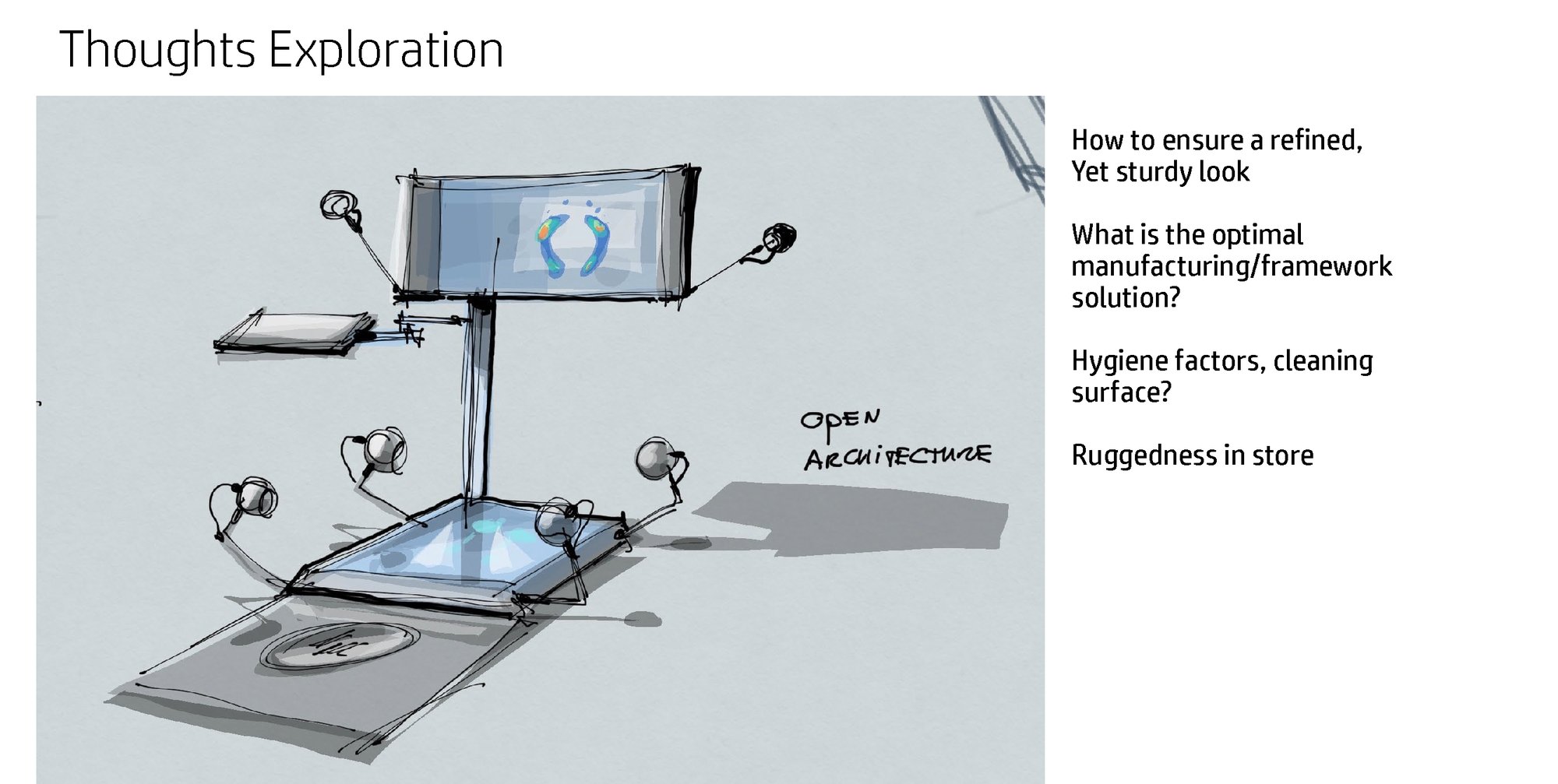

Thoughts exploration sketch — open architecture scan station

Open architecture — refined, yet sturdy

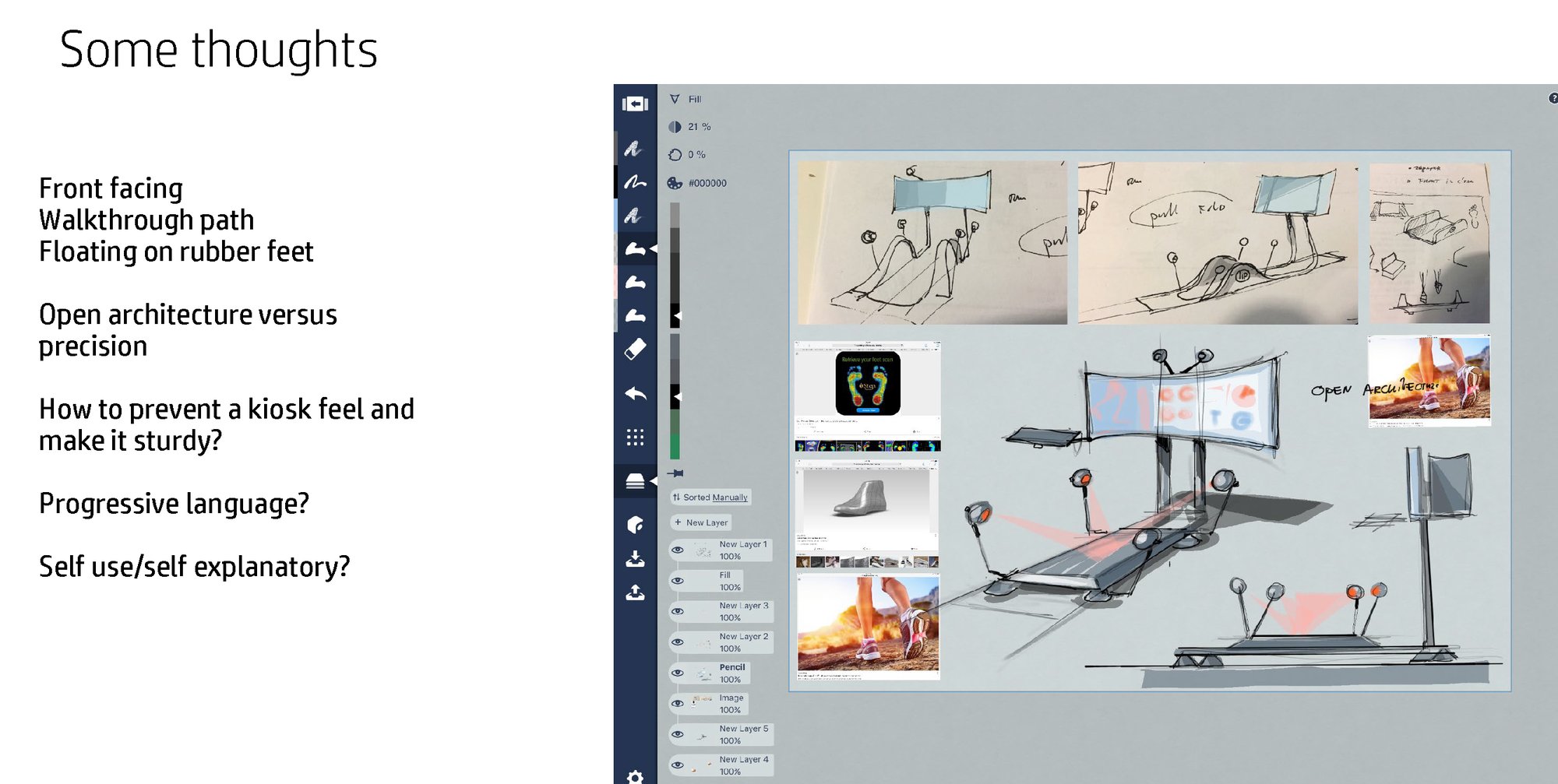

Sketchbook session — front-facing walkthrough concepts

Front-facing, walkthrough path, floating on rubber feet

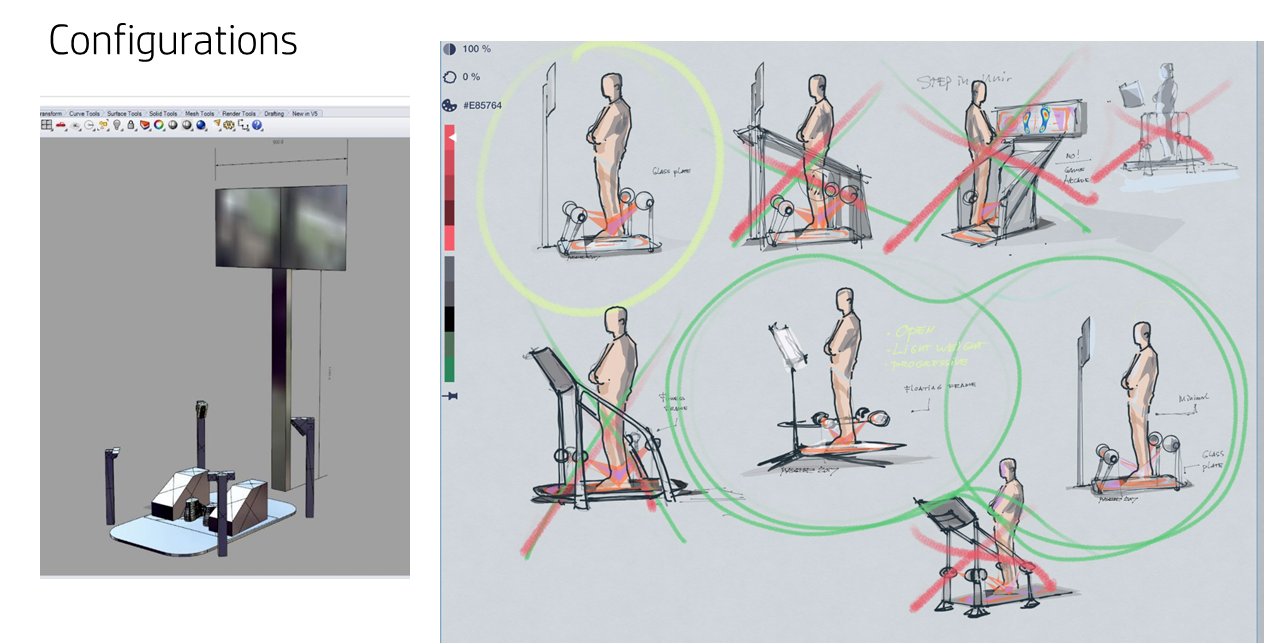

Configuration studies — finding the natural scanning stance

Configurations — finding the natural stance

Scan plate sketch — glass surface with lens heads

The scan plate — glass, lenses, light

Concept 1

The foot scanner
Concept 1 — the scan platform, a glowing glass plate under four camera heads

The platform — light as the signature

Concept 1 render — scan rigs beside a captured figure

Concept 1 — the rigs, rendered

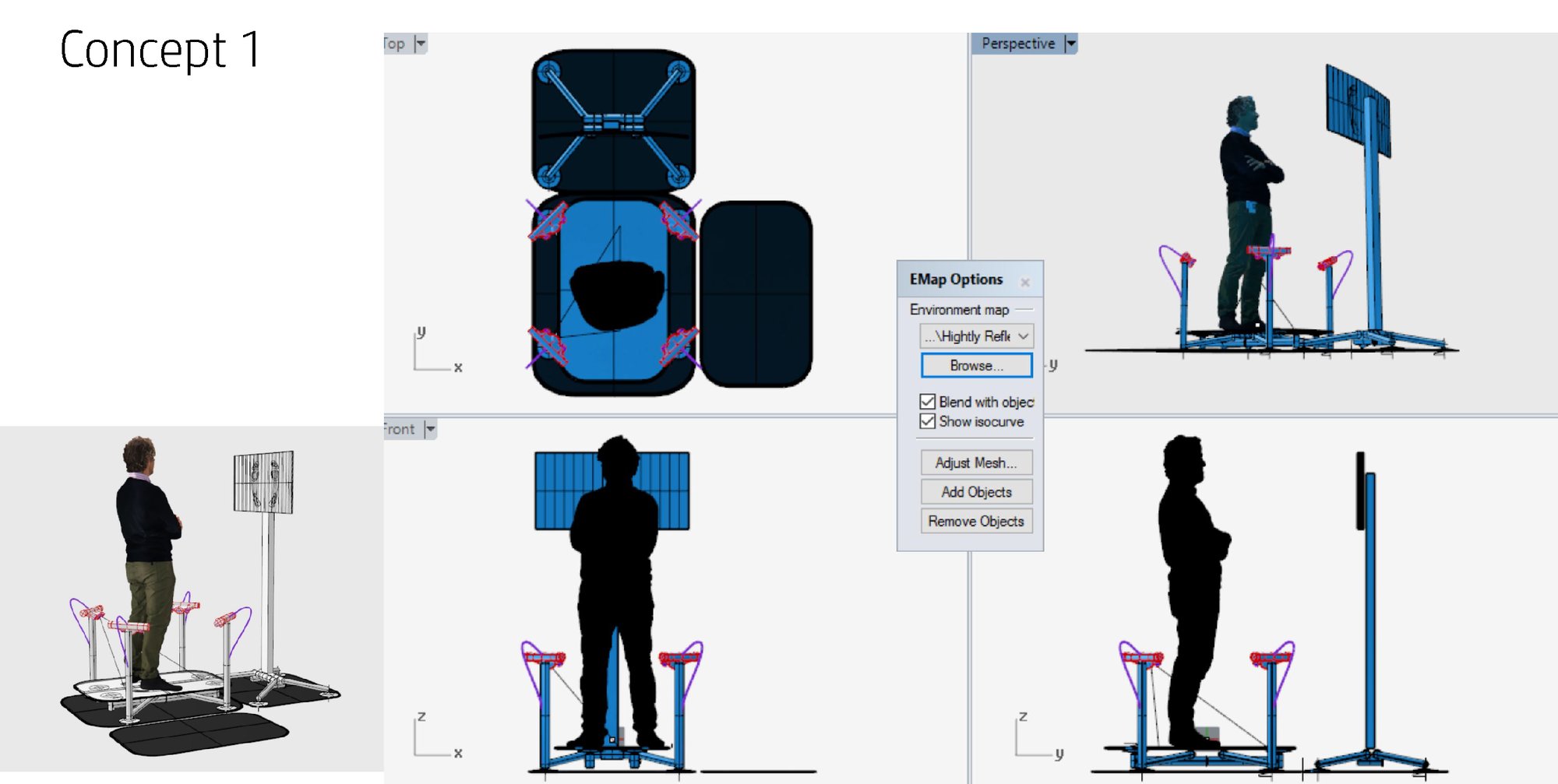

Concept 1 in CAD — four working views of the scan station

Concept 1 — four views, in the works

The team

All projects are always team work. The Palo Alto team asked me to help elevate the early functional prototypes towards pitches to the executive team. I built those prototypes out into a grander vision — one that showed the potential for a roadmap around 3D scanning.

My idea: HP is essentially a portal from pixels to ink — and it could extend from any scan to voxels. HP as the portal between real life and virtual workflows would complete the full-service offering.

Molecules to Matter was the identity platform I proposed, built on HP's fluid-dynamics essence; the HP brand-identity team then grew it into a full identity system.

I joined that team to understand and help expand their working prototypes into an HP strategic-roadmap pitch — from sketches, to renders, to a quick visual of the whole suite. This is my happy place.

This project was designed in a team dynamic with the HP experience-design team.
